快人一步 稳夺先机| 六面数控钻孔中心DN-612MR
发布时间：
2022-07-05 15:46
来源：
核心亮点
控制系统升级
Control System Upgrade
采用EtherCAT总线控制系统,微秒级响应速度。
Applies EtherCAT bus control, microsecond response speed.
软件技术升级
Software Upgrade
多线程同步运行,优化机构动作协调,高效稳定运行钻孔加工。
Multithread and synchronous run as well as optimization of motioncoordination make drilling in more efficiency and stability.
抓手最高速度135m/min
Clamps Max.Moving Speed 135 m/min
快速定位加工,提高加工效率。.
Fast positioning for drilling improves efficiency.coordination make drilling in more efficiency and stability.
小板加工
Dilling on Small Boards
满足多种小板加工工艺需求
Satisfy drilling on small boards.coordination make drilling in more efficiency and stability.
最小加工板件70* 35mm
Min.workpiece size: 70* 35mm

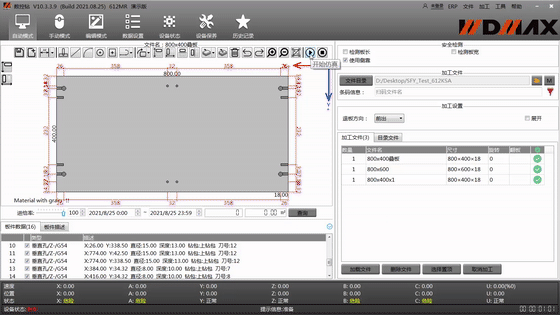

新版本软件功能更全面
New Version Software with Comprehensive Functions
最优钻孔路径设计,高效加工。
Optimal diling path makes machining in high eficiency.

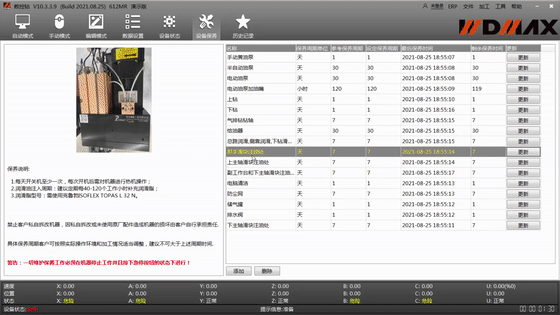

加工记录实时统计。
Real-time statistics of machining records.
配置特点

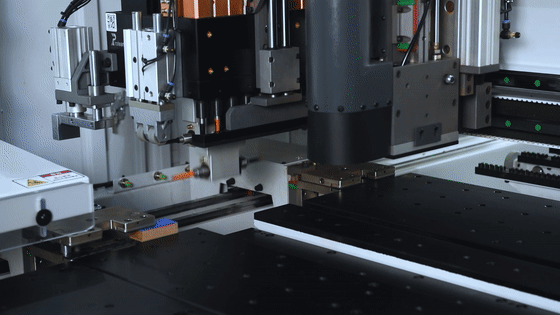

双抓手长导轨机架
Long Clamp Stroke Equipped
抓手导轨5500mm,长板件可一次抓料完成加工;
减少换手次数,提高加工效率,主要结构件经过退火处理。
Clamp Stroke: 5500mm, One-time feeding and machining with 2800mmlong panel, reducing times in clamp changes and improving drilling efficiency.

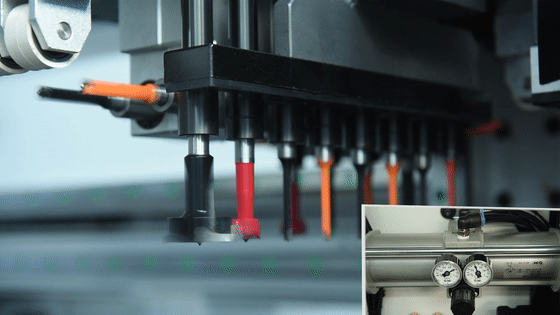

钻孔转速变频控制
Dilling Speed Controlled by Inverter
根据孔径大小快速切换钻孔转速,提高钻孔质量,减少爆边。
Fast change diling speed according to holes diameter, improving dillingquality and reducing burst on panel edge.long panel, reducing times in clamp changes and improving drilling efficiency.
配置增压系统
Pressurization System Configured
提高钻孔气压,保证钻孔深度一致, 提高钻孔效率。
Increase the drilling pressure, ensures Hole- depth consistent,and improves drilling efficiency.long panel, reducing times in clamp changes and improving drilling efficiency.

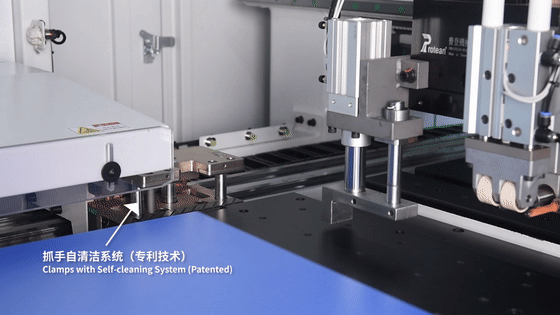

抓手自清洁系统(专利技术)
Clamps with Self-cleaning System (Patented)
清理板件表面灰尘，提高加工精度。
Clean off dust on panel surface, and improves milling accuracy.

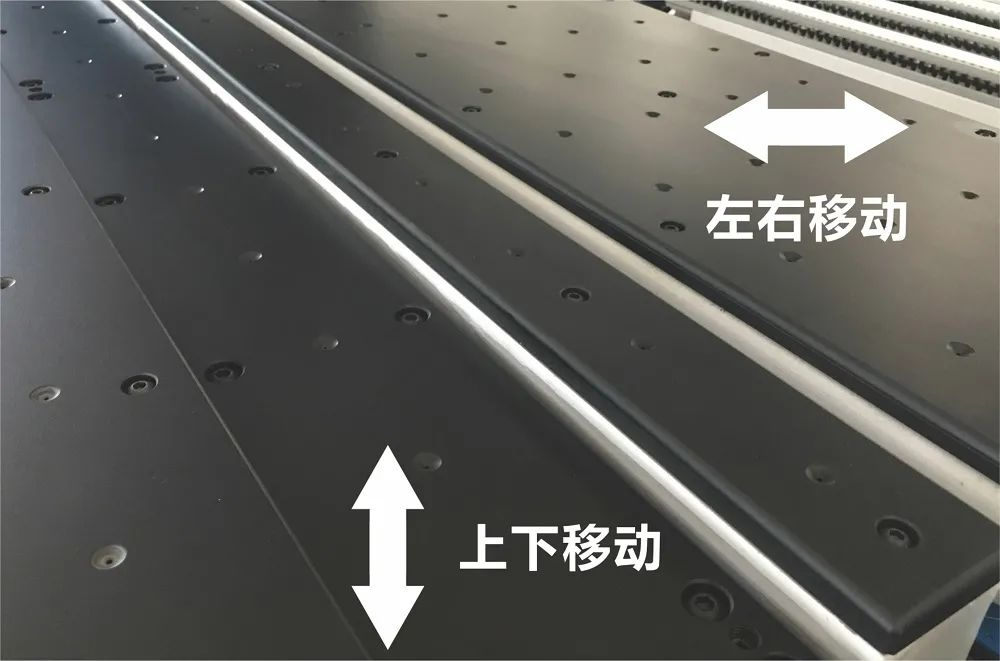

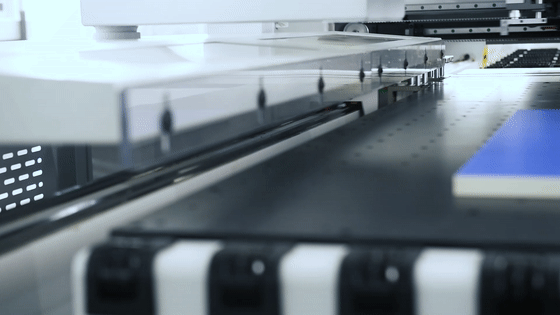

移动气浮工作台(专利技术)
Air-float Worktable (Patented)
智能支撑钻孔,提高钻孔精度,减少板件刮伤及撞板现象。
Intelligently support drilling machining, improves drilling accuracy,reduce panel scratches and hit against.

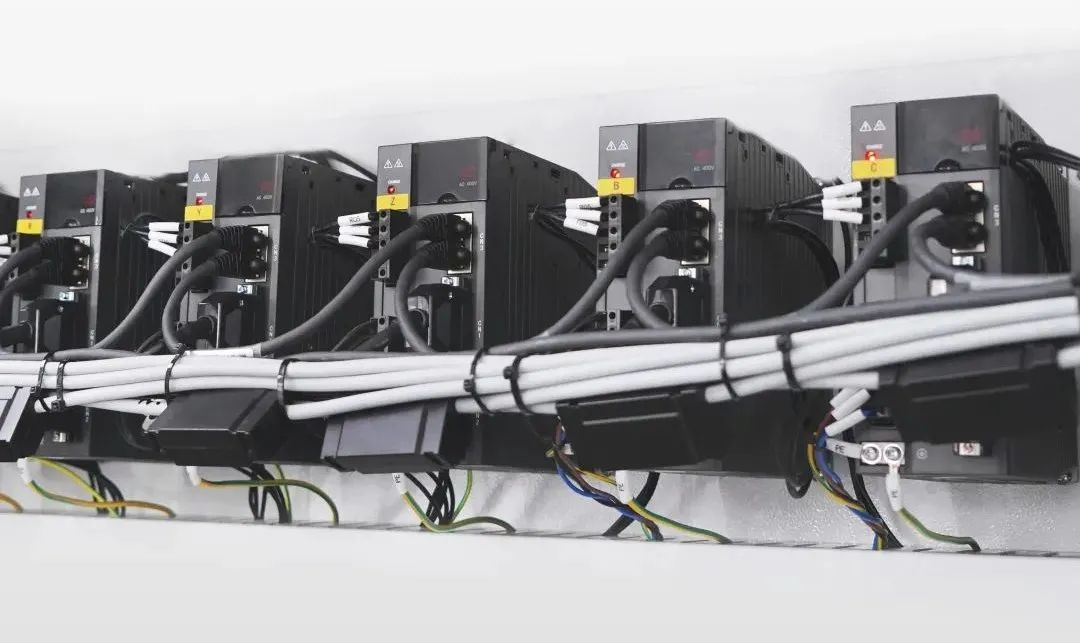

绝对值伺服总线控制系统
Absolute Value Servo Bus Control System
开机无需回到原点操作,上电即用。
No need for homing, and machine can be used immediately power on.reduce panel scratches and hit against.

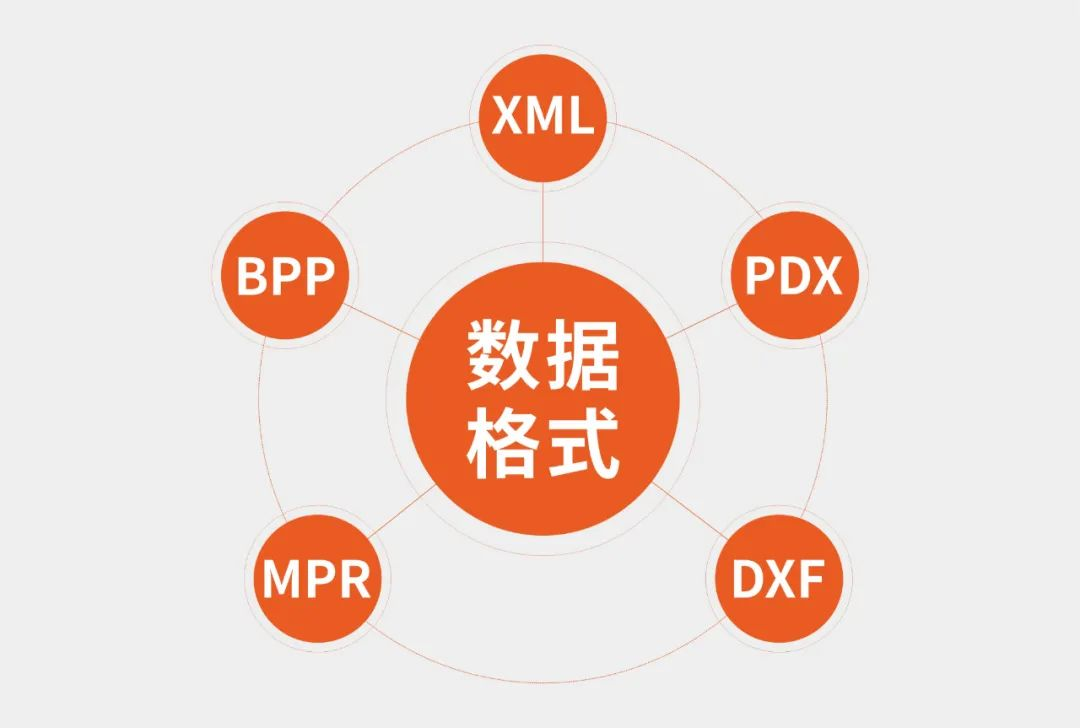

兼容多种数据对接格式
Compatible with Multiple Data Formats
计算机操作,便捷高效。
Convenient and efficient operation.reduce panel scratches and hit against.
技术参数
|
型号 Model |
DN-612MR |
|
工件长度 Panel Lenght（mm） |
70-2800 |
|
工件宽度 Panel Width（mm） |
35-1200 |
|
工件厚度 Panel Thickness（mm） |
9-60 |
|
抓手最大速度 Max Speed of Gripper（m/min） |
135 |
|
Y/Z轴最大速度 Max Speed of Y/Z-Axis（m/min） |
75/30 |
|
刀具数量 Number of Drills |
上垂直钻12V+水平钻8H+下垂直钻9V |
|
主轴功率 Power of Spindle（kW） |
2*3.5 |
|
总功率 Total Power（kW） |
20.65 |
|
外形尺寸 长*宽*高 Overall Size L*W*H（mm） |
5675L*2480W*2190H |
|
吸尘口尺寸及数量 Size&QTY of Dust Hood |
200*1 150*1 |
